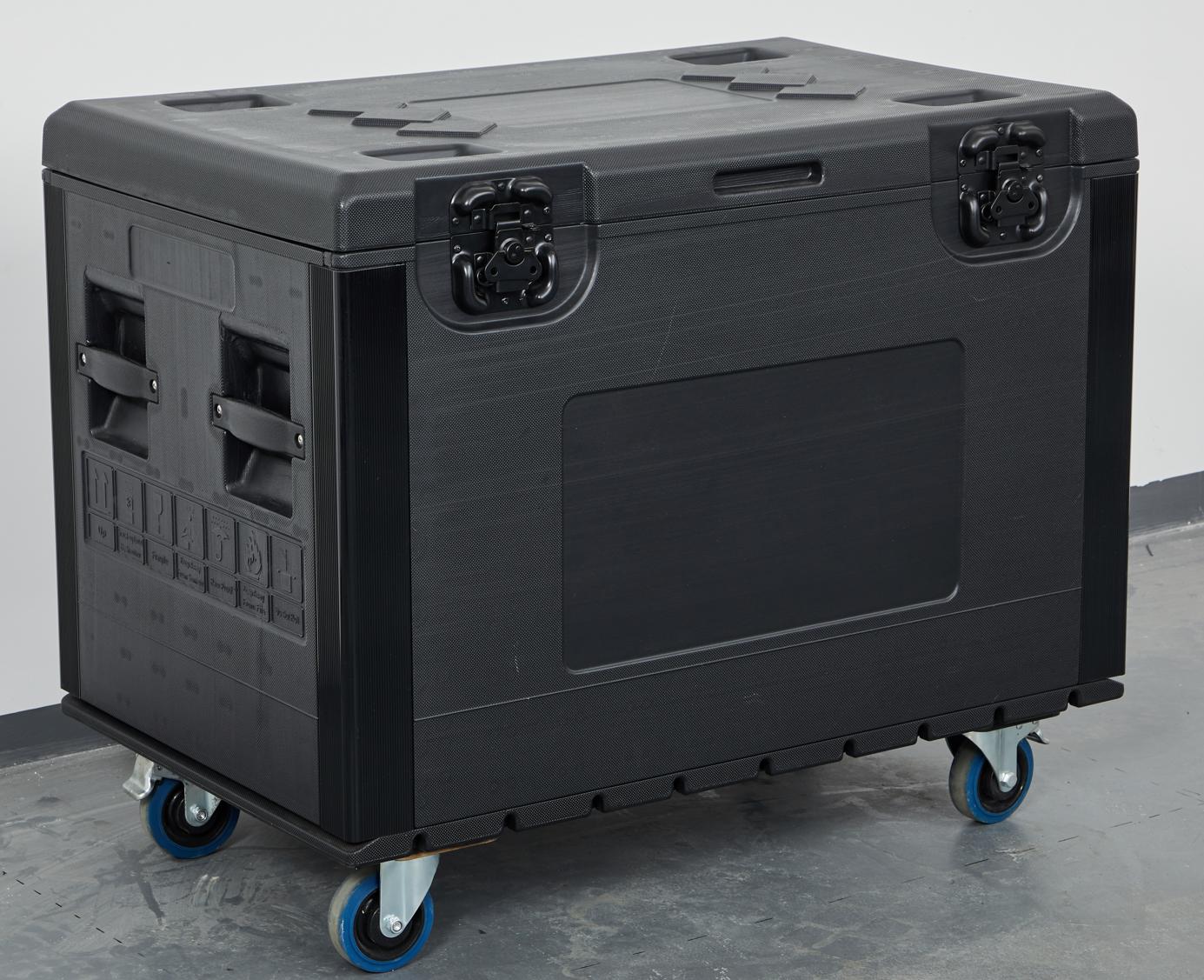

LED-1130PE / Wheeled
Large LED Panel Case
1000×500 panels (70–91mm) — 5 per case
500×500 panels (<70mm) — 10 per case
- Outer
- 1130 × 570 × 750 mm (incl. casters)
- Inner
- 1050 × 520 × 520 mm
- Weight
- 34.8 kg
For LED Rental & Touring Operations
LED Transport Cases
For Rental Fleets
That Move Every Week.
Purpose-built PE cases for LED rental fleets, touring systems, warehouse turnover and repeated event transport — engineered around 500×500 and 1000×500 panel workflows, not retrofitted from generic flight cases.
- 500×500
- Panel format ready
- 1000×500
- Panel format ready
- Stackable
- Truck & container loading
LED RENTAL FLEETSTOURING PRODUCTIONSTAGE ENGINEERINGAV DISTRIBUTORSEVENT LOGISTICSOEM / PRIVATE LABEL
01 / The Problem
LED panels don't sit in a warehouse. They get moved.
Every show cycle pushes panels through loading docks, trucks, venue ramps and warehouse turnover. Generic packaging is built for one trip. Rental cases are built for repeated seasonal use.
01
Panel damage in repeat transit
Tile-edge cracks and module corner impacts after 6–10 site cycles.
02
Unstable stacking on trucks
Mixed case dimensions cause leaning loads and strap-down headaches.
03
Slow load / unload at venues
Crews lose time when cases don't roll, latch or stack predictably.
04
Warehouse turnover wear
Plywood and laminate flight cases delaminate after a season of touring.
05
Oversized freight volume
One-piece bulky cases burn cube on every container shipped.
06
Inconsistent replenishment
Re-orders that don't match the existing fleet break standardization.
02 / LED Display Case Range
Two standard formats.
Sized around real LED panels.
Our LED case range is built around the two panel sizes that move most in rental operations. Internal layout can be adjusted to panel thickness and crew workflow.

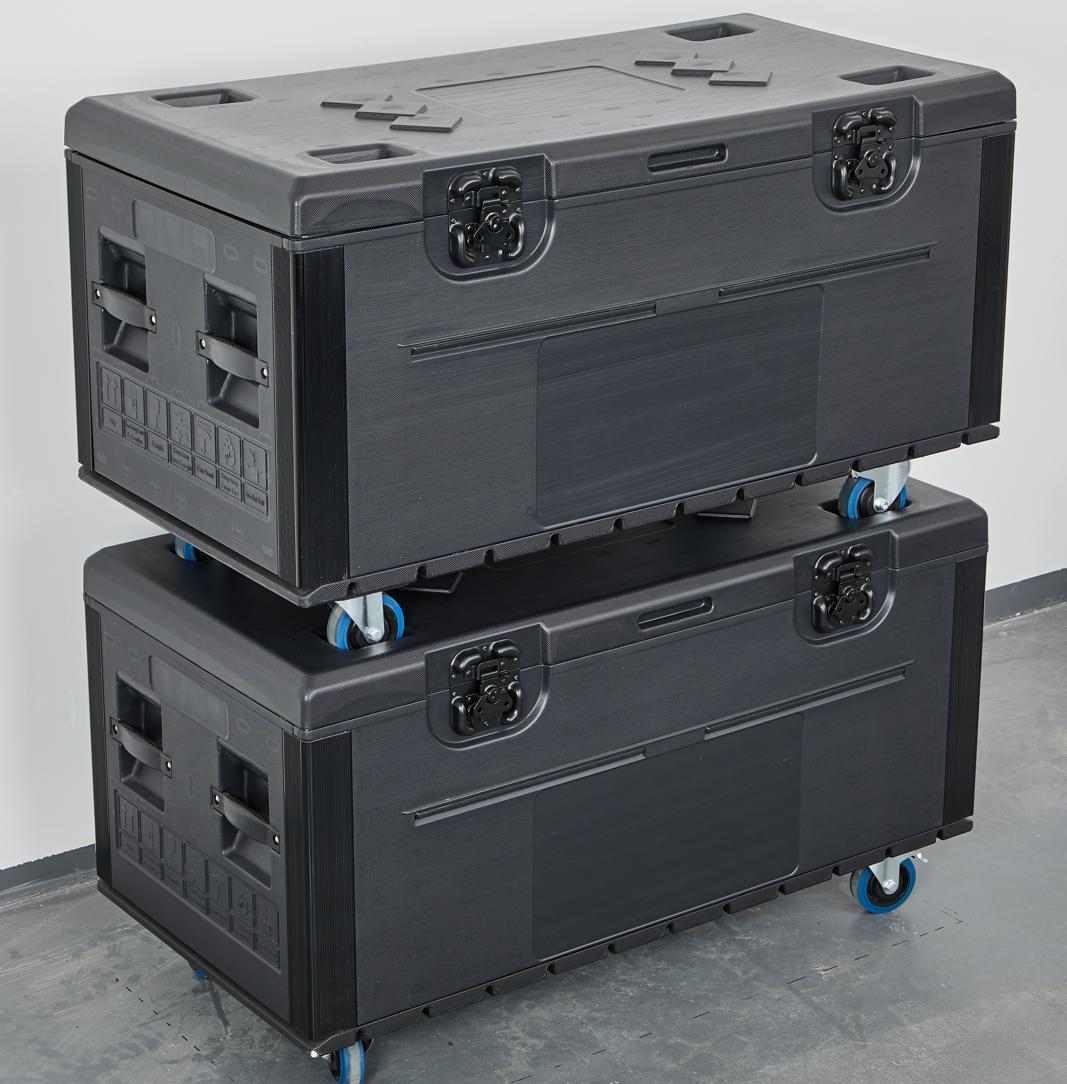

LED-900PE / Wheeled
Compact LED Panel Case
500×500 panels (<91mm) — 8 per case
500×500 panels (<70mm) — 10 per case
- Outer
- 900 × 570 × 750 mm (incl. casters)
- Inner
- 820 × 520 × 520 mm
- Weight
- 29 kg

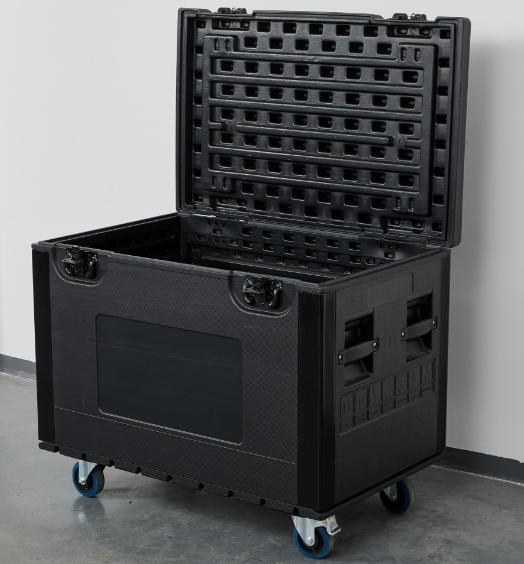

Interior Build
Vertical panel slots with adjustable dividers
- Full-virgin PE shell — water and moisture resistant
- TPR silent casters with diagonal-brake setup
- Recessed top features for predictable stacking
- Twist latches with reinforced strike points
- Side handles sized for two-crew lifts
- Foam / mesh / divider configurable per fleet
03 / Inside The Case
How LED panels are
actually protected inside.
The shell is only half the story. Internal foam structure, divider geometry and connector clearance are what keep LED modules alive across repeated tours, warehouse turnover and venue load-in / load-out cycles.

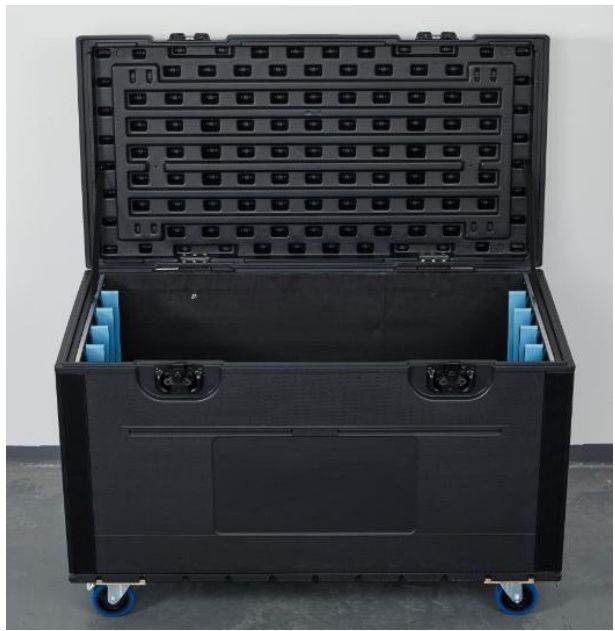

PANEL CAVITY — 1050×520×520
Catalog reference: large case interior dimensioned for 5× 1000×500 panels or 10× 500×500 panels stacked vertically, locked between blue EVA end-blocks.

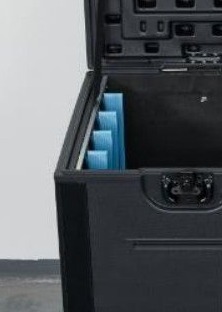

EVA DETAIL — CLOSE-UP
Stacked EVA layers create a sized channel for the panel edge — anti-vibration, anti-rotation, repeatable across cycles.
01
Blue EVA end-block bracing
Catalog-standard EVA blocks at both inner case ends compress against the panel stack, eliminating side-to-side shift on truck and ramp.
02
Vertical panel stacking
Panels stand on edge inside the cavity — load distributed through frame edges, not across the LED face. Faster to load and unload at venues.
03
Full-PE inner shell
Full-virgin PE walls absorb impact and resist moisture. Recessed top features lock the next case above for stable in-truck stacking.
04
Sized inner cavity
Large case: 1050×520×520mm — fits 5× 1000×500 panels or 10× 500×500 panels. Small case: 820×520×520mm — fits 8× 500×500 panels.
05
Twin twist-latch closure
Two heavy twist latches per side hold the lid under repeated stack pressure. Crew handles each end for predictable two-person lifts.
06
Configurable EVA layout
EVA block thickness and divider count adjusted to 70 / 80 / 91mm panel depths so one case format scales across mixed LED inventory.
03 / Logistics Workflow
One transport system
across every show cycle.
Cases that behave the same way on every load-in, every load-out, every warehouse return. Built for high-frequency LED panel movement — not a one-trip box.
01
Load-in
Wheeled cases roll off the truck. Recessed top features mean predictable stacking on venue ramps.
02
Show cycle
Panels stay in their slots between rigs — no re-foaming, no re-packing for the next call.
03
Load-out
Same crew, same case count back on the truck. Twist latches and side handles built for two-crew lifts.
04
Warehouse turnover
Cases stack consistently in the rack. PE shells are built for repeated seasonal use — not just one-time transport.
04 / Procurement Tool
PE Case
Selection Sheet.
A buyer-side worksheet to match your existing LED inventory — panel size, panel thickness, quantity per case, and the right standard model — before the first quote. Used by rental fleets and distributors planning seasonal replenishment.
- ✓Match 500×500 / 1000×500 panels to the right shell
- ✓Plan case quantity from your panel inventory
- ✓Confirm dimensions before container loading
- ✓Standardize fleet across repeat orders
PE Case Selection SheetRev. 2025
| Panel | Thickness | Per Case | Model |
|---|---|---|---|
| 1000×500 | 70–91 mm | 5 | LED-1130 |
| 500×500 | < 91 mm | 8 | LED-900 |
| 500×500 | < 70 mm | 10 | LED-1130 |
| 500×500 | < 70 mm | 10 | LED-900 |
Outer 1130 / 900 mm — wheeled, stackable
05 / Why Rental Operations Choose Us
Built around the way
rental fleets actually re-order.
01
Designed around LED panel sizes
Internal layouts and dividers built specifically for 500×500 and 1000×500 panel formats — not retrofitted from generic flight cases.
02
PE shell for repeated transport
Full-virgin PE board: water and moisture resistant, high toughness, impact resistant — suited for repeated loading, unloading and stacking cycles.
03
Stackable, rollable, crew-friendly
Recessed top features, side handles, TPR silent casters with diagonal brakes — designed to behave the same way every show.
04
Mold-based standard models
A fixed range built from dedicated molds — easier to repeat-order, easier to match across fleet expansions.
05
Knock-down shipping on selected models
Selected cases ship flat-packed with installation drawings to reduce freight volume on overseas orders.
06
Optional internal layout adjustments
Standard shells with adjustable foam, mesh and divider configurations to match panel thickness and crew workflow.
06 / Distributor & OEM
Repeat supply for
distributors, OEM buyers
and rental fleet replenishment.
We supply international AV distributors and rental fleets, with strong fit for GCC / Middle East, Southeast Asia and European distributor channels — buyers who need consistent, repeatable PE case supply, not a different sample every quarter.
Mold-based production
Standard shells from dedicated tooling — consistent dimensions across re-orders.
Standardized LED transport system
One supplier across your 500×500 and 1000×500 panel fleet.
Knock-down shipping option
Selected models ship flat-packed with installation drawings.
Practical export cooperation
Container loading plans, packing logic and shipping documentation prepared for the AV channel.
07 / Start the Conversation
Need transport cases
for your LED rental fleet?
Send us your panel size and quantity. We'll reply with matching standard case suggestions, packing logic and lead-time direction, typically within 1–2 working days.
